轉移印花的優點:轉移印花具有耐光曬、耐水洗、色牢度強、色彩豐富等特點,可用于服裝、家用紡織品(窗簾、沙發、臺布、雨傘、浴簾、箱包)等產品的印花。該印花技術集綠色、環保、低碳、節能、減排、生態等為一體,是紡織印花技術的重大突破。印后織物,手感柔軟,色澤鮮艷,層次豐富,透氣性好。
熱升華滾筒印花機詳細介紹: http://www.cmjx88.com
適用范圍:臺片/匹布兩用機器,可以方便快捷的轉印各種大小裁片產品,又可以連續轉印匹布。
1:整機式主機機架,堅固不易變形、轉動,導布機械設計靈巧,操作簡便。機器的主要部件主滾筒內
部設有內循環系統通過電加熱、油導熱,使滾筒表面溫度控制在±1℃以內。
2:采用PID自動溫控儀,自動調節保溫電流控制精度高。
3:手動退毯帶裝置,升降溫時脫開毯帶,延長毯帶使用壽命。
4:本機設有布邊紙及墊紙裝置,降低毛毯污染,減少清洗次數。
5:轉印之后成品免處理,花樣色彩鮮明,柔軟光麗,保持色質經久不變。
6:印花速度控制采用變頻控制。
7:溫度范圍:室溫300℃
8:全自動程序化高,有定時開機、延時關機之功能。
9:采用三放兩收,使轉印后的紙同產品分離,廢紙被打卷。
10:本廠所產的多功能熱升華滾筒印花機,適合各種面料:臺片、成衣、家紡、磨毛布、超細纖維布等等。
Transfer printing advantages: transfer printing with sun light, washable, color fastness strong, rich colors and other characteristics, can be used in clothing, home textiles (curtains, sofa, tablecloths, umbrellas, shower curtains, bags) and other products of printing. The set of green printing technology, environmental protection, low-carbon, energy saving, emission reduction, ecological as a whole, is a major breakthrough in the textile printing technology. After printing fabric, soft, bright color, rich layers, good air permeability.

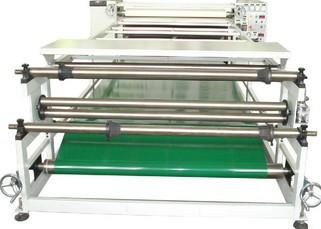

Sublimation roller printing machine Details:
Scope: Taiwan chip / dual-use machine bolts of cloth, can easily and quickly transfer pieces of various sizes products, which can then be transferred bolts of cloth.
1: Host machine frame, sturdy easy to distort, turn, turn fabric mechanical design smart, easy to operate. Main components of the machine within the master cylinder
Within the circulatory system through the Ministry has electric heating, oil heat conduction, so that the drum surface temperature controlled within ± 1 ℃.
2: The PID automatic temperature controller, automatically adjust the heat current control accuracy.
3: Manually back blanket belt device, when disengaged blanket with heating and cooling, to extend blanket with life.
4: The machine has selvage paper and pad of paper device to reduce the blanket pollution, reduce cleaning times.
5: free transfer after treatment finished, the pattern bright, soft light Korea, maintaining color quality enduring.
6: Printing speed control variable frequency control.
7: Temperature range: 300 ℃
8: Automatic procedures are high, regular boot, delay shutdown function.
9: The three put two closed, so that after the transfer paper with product separation, waste paper was beaten volumes.
10: The factory produced multifunctional sublimation roller printing machine, suitable for a variety of fabrics: set pieces, garments, home textiles, sanding cloth, microfiber cloth and so on.
滾筒直徑 |
滾筒寬 |
電壓 |
功率 |
溫度范圍 |
印花速度 |
重量 |
主機尺寸 |
420mm |
1.2m |
380v |
18kw |
0-240℃ |
0-6m/min |
800KG |
1.86*0.92*1.3m |
750mm |
1.2m |
380v |
40kw |
0-240℃ |
0-22m/min |
1100KG |
2.45*1.10*1.45m |
420mm |
1.7m |
380v |
18kw |
0-240℃ |
0-10m/min |
1000KG |
2.90*1.10*1.10m |
500mm |
1.7m |
380v |
22kw |
0-240℃ |
0-15m/min |
1300KG |
2.90*1.20*1.10m |
600mm |
1.7m |
380v |
26kw |
0-240℃ |
0-18m/min |
1500KG |
2.90*1.30*1.40m |
600mm |
2.3m |
380v |
30kw |
0-240℃ |
0-18m/min |
1800KG |
3.50*1.30*1.40m |
